Brand Name: Laiyuan
Model Number: Customized
Place of Origin: Jiangsu, China (Mainland)
Pls Click
to send inquiry to us.
Product Description

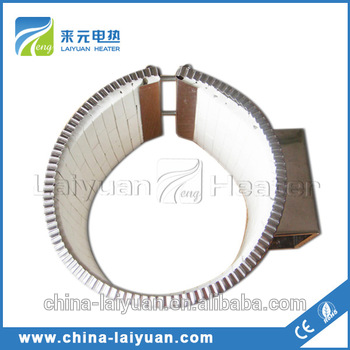

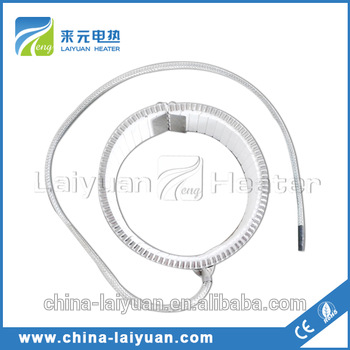

electric resistance heater ceramic band
Laiyuan ceramic heaters are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Ceramic heater is primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 5000C along with Energy Saving.
Features
electric resistance heater ceramic band
Sheath Material |
Stainless Steel cover for electric band heater |
Insulators |
High Grade Steatite Ceramic Insulators (High temperature) |
Heat Saving Thermal Insulation |
Ceramic Fibre (std.) |
Heating Elements (coil) |
NiCr 80:20 |
Nominal Wall Thickness |
Premium Heat : ½" |
Connection |
Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals |
Voltage Range |
110V - 440V, Single, Three Phase |
Surface Loading |
35-55W / inch2 (depending upon model & application) |
Power Rating |
Depending upon application |
Power Tolerance |
± 10% |
HV Testing |
1.5 Kv between heating element and sheath |
Insulation Resistance (Cold) |
< 20 MΩ |
Sheath Temperature |
Up to 500°C maximum (Chrome Nickel Steel sheath) |
Gap Between the Clamping Edge |
5 - 10mm |
Resistance |
+/- 10% |
Width : |
Minimum 50mm and there after multiples of 15mm. |
Inner Diameter |
Minimum 50mm |
Application
electric resistance heater ceramic band
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
11.Wood Molding Machine
Product Show
Production Design
Product Application
Product Package
Our Certifications
Our Factory
Our Customers
FAQ
1.Laiyuan is Factory or Trade enterprise?
Laiyuan is an integrated enterprise of factory and trade .
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China .It is closed to Shanghai ,only 4 hours by bus.
3.Which Certificate does your product awarded?
ISO9001,CE,ROHS.CCIC
4.Before ordering, we need sample for testing ,is it ok?
Yes, of course. We can provide sample for testing before bulk order.
5.How does your company control your product quality?
Quality is the cornerstone of the survival and development of Laiyuan .
We control the quality throughout all the production process..
6.How to contact me ?
Whatsapp: 86-15950234054 Phone:86-15950234054
Skype: 229383017 at qq.com E-Mail.: sales005 at china-laiyuan.com
YOUR VISIT WILL LEAD LAIYUAN PEOPLE TO DO BETTER!
