oil heter Instant Water Heater Flange Heater

Application Of Electric Immersion Water Heater :

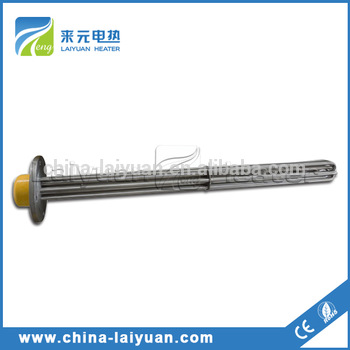

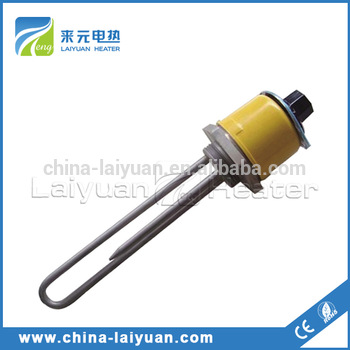

Flange immersion  heater are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, Laiyuan flange immersion heaters are ideal for applications requiring higher kilowatts.

Laiyuan flange immersion heaters feature Laiyuan 's industry leading heating elements. These elements can be brazed, staked, or welded to a four- or six-bolt flange and mounted directly to a mating flange that is welded to a tank wall nozzle.

Laiyuan  flange immersion heaters are available with a wide array of options to tailor each heater to your particular application. To provide process temperature control, Additionally, there are a number of terminal enclosures available to protect wiring from moisture, corrosion or to provide an air-insulating barrier between the flange and terminal enclosure. Type J or K thermocouples, which offer more accurate sensing of process and/or sheath temperatures, may be inserted into the thermowell or attached to the heater's sheath. For forced circulation applications, baffles can be arranged on the heating element bundle to enhance and/or modify fluid or gas flow for better heat transfer. A number of material and size options are also available.

Features of Electric Immersion Water Heater :

Flanges immersion heaters are one of the most widely used methods for heating gases and liquids (such as water, oil heat transfer fluid and corrosion solution). Designed for use in tanks and pressurized vessels, they are easy to install and maintain to provide heat for many process. The direct immersion method is energy efficient and easily monitored and controlled.

1.Hot Water Storage Tanks

2.Warming Equipment

3.Preheating All grades of Oil

4.Food Processing Equipment

5.Cleaning and Rinsing Tanks

6.Heat Transfer Systems

7.Process Air Equipment

8.Freeze Protection of any Fluid

1.Laiyuan is Factory or Trade enterprise?

Laiyuan is an enterprise incorporating Factory and Trade .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It is closed to Shanghai ,only 4hours if by bus.

3.Which Certificate of your product does your company have?

ISO9001,CE,ROHS.CCIC

4.Before order, we need sample for test ,is it ok?

Yes, of course. We provide sample for test before bulk order.

5.How does your company to control your product quality?

Quality is the cornerstone of the survival and development of Laiyuan .

We control quality from the beginning to the end all the time.

6.How to contact me ?

Whatsapp & Phone:+86-18051555578

Skype &  E-Mail.:sales003ATchina-laiyuan.com

YOUR VISIT WILL LEAD LAIYUAN PEOPLE TO DO BETTER!
