Brand Name: Laiyuan
Model Number: LY-IRCH-15003
Place of Origin: Jiangsu, China (Mainland)

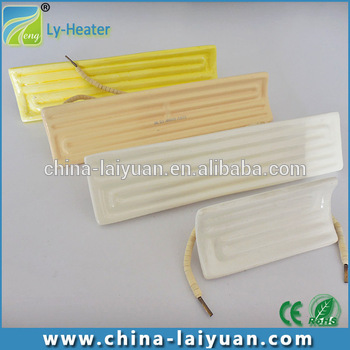

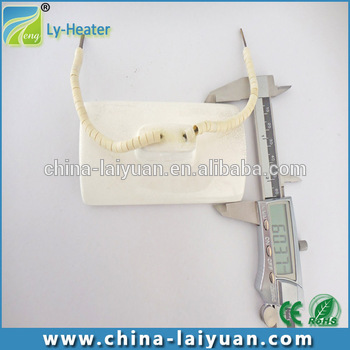

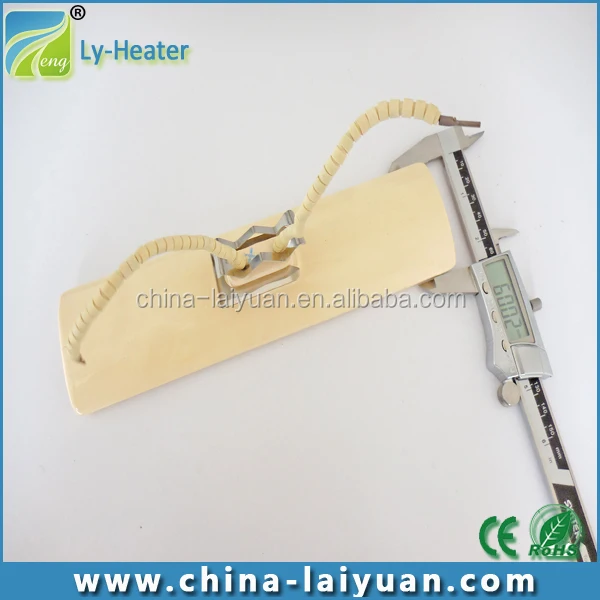

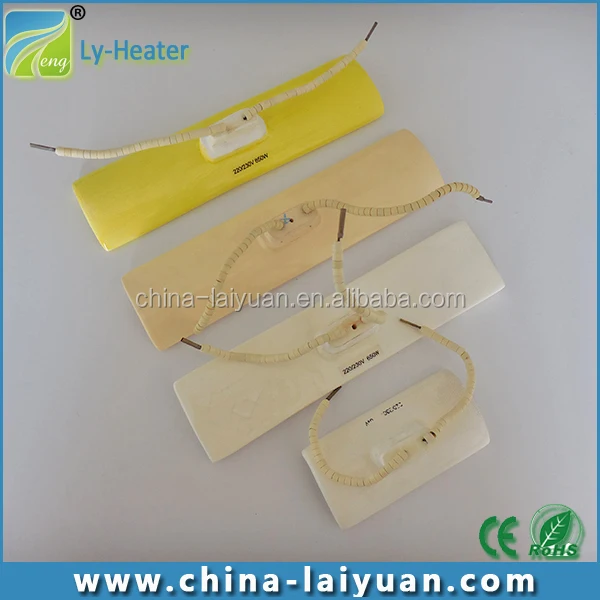

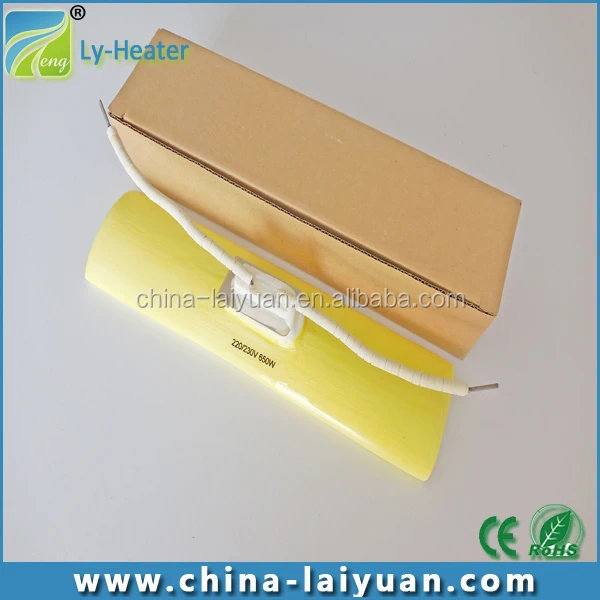

IR Ceramic Far Infrared Heaters
Specifications Of Infrared Ceramic Heater :
IR ceramic heater:
-Material:ceramic for body
-Used in chemical industry
-High quality & best price
IR ceramic heater:
Embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with good heat and shock property as base,and are sintered once by nichrome wire.
Main technical parameter and property:
1.Radiated characteristic: the tiptop single color of radiance of element can reach 0.9 |
|
2.Time of heating response: from room temperature to surface temperature of radiated plate, the fixed time will not exceed 20 minutes. |
|
3.Cold and hot resistance: the base body is heated to 800 C and put in cold water repeatly for many times and no cracking. After cold and hot mutual change test for five times, no peel and no craze. |
|
4. The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage. |
|
5.Good chemical stability; strong causticity-resistance; perfect oxidation-resistance |
|
6.The heating damage of non radiated surface is small. |
|
7. Resistance in common temperature: |
1012 ohm 0cm |
8.Uneven degree for radiated surface temperature:≤15% |
|
9. Rupture strength for base body: |
440Kg/cm2 |
10.Tolerance of power: |
≤5% at rating working voltage |
11.Cold state insulated resistance |
500V tramegger>2 mΩ |
12.Thermal state insulated resistance: |
500V tramegger>5 mΩ |
13.Using life span: |
>3000 hours |
14.The effect of energy saving is obvious, increasing 10-25% compared with silicon carbide element |
|
15. The life span can prolong more than a few times compared with silicon carbide element. |
|

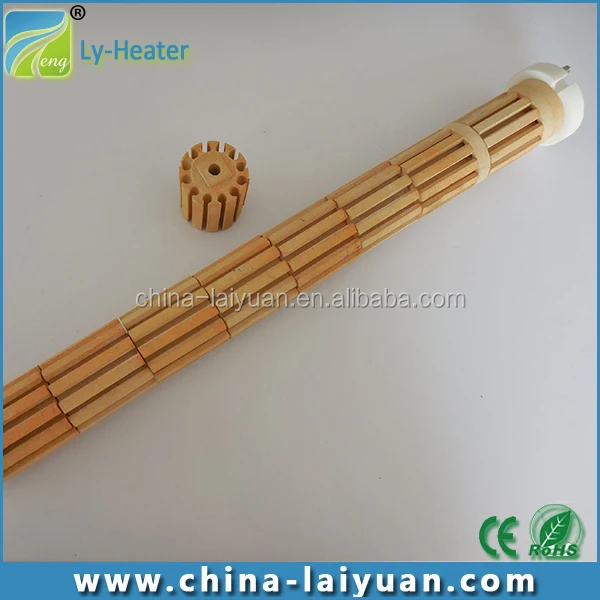

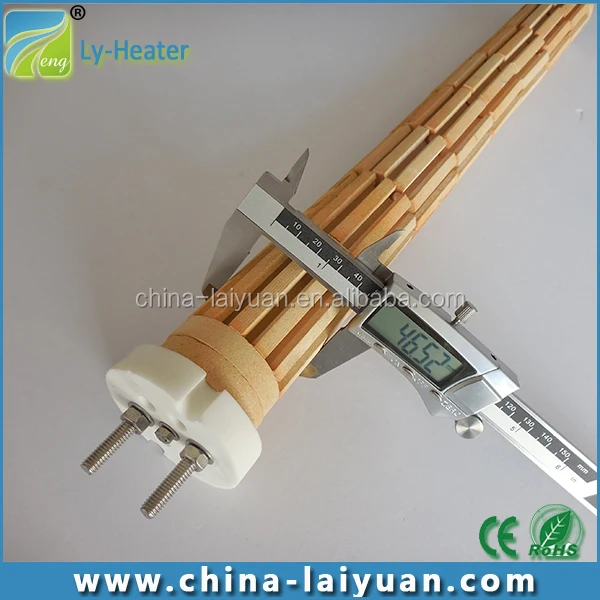

Ceramic Bobbin Heater

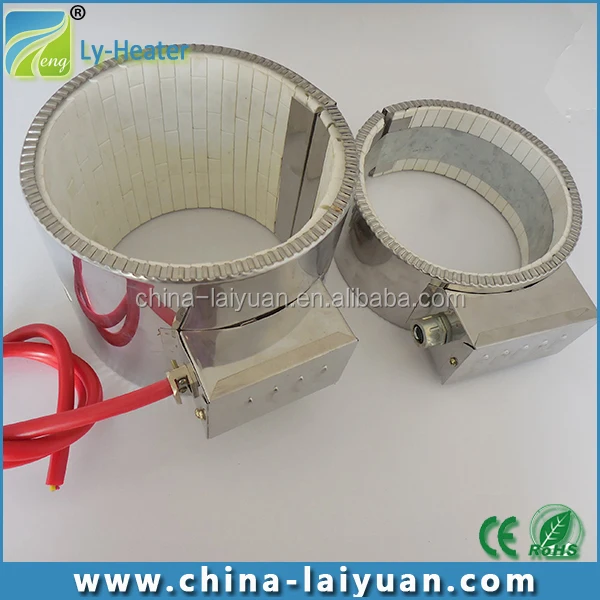

Ceramic Band Heater
Application Of Far-infrared Ceramic Heater
1. Are you Manufacture or Trade Company?
We are manufacture for Industry Heating Element several years.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China .
It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .
3.What type of payment do you have available?
A: TT and L/C
B: West Union,Money gram and Aliexpress are available for sample order .
4.How can I get some samples?
We are honored to offer you samples .
5.How does your factory do regarding quality control?
Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details ,most competitive price for you !
